YAMAHA 長號靜音效果器 SB5X
商品編號:3924636
定價:NT$    元
會員獨享價:NT$

請登入
商品品牌:YAMAHA
型號:SB5X
產地:  顏色:
Details Notice Model info

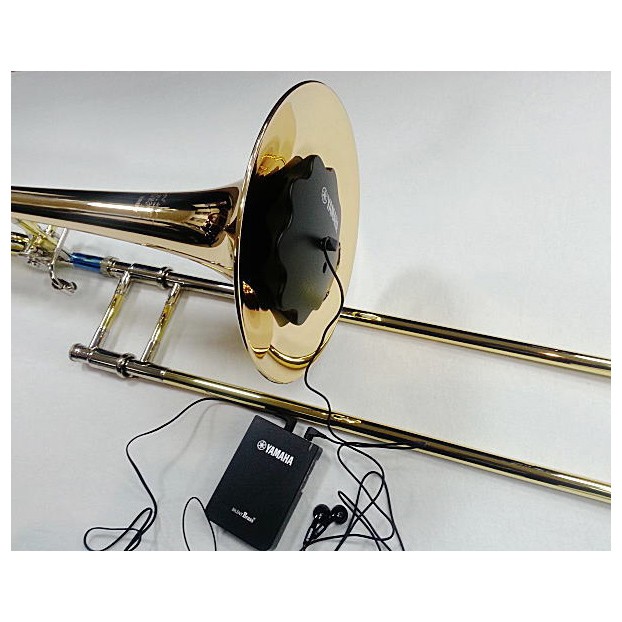

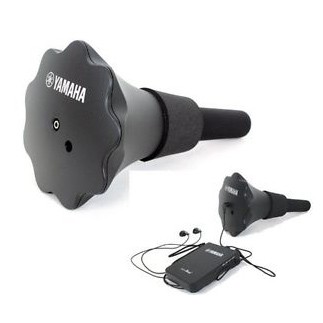

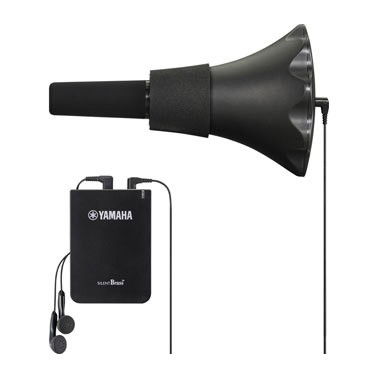

YAMAHA SB5X  長號靜音效果器


規格

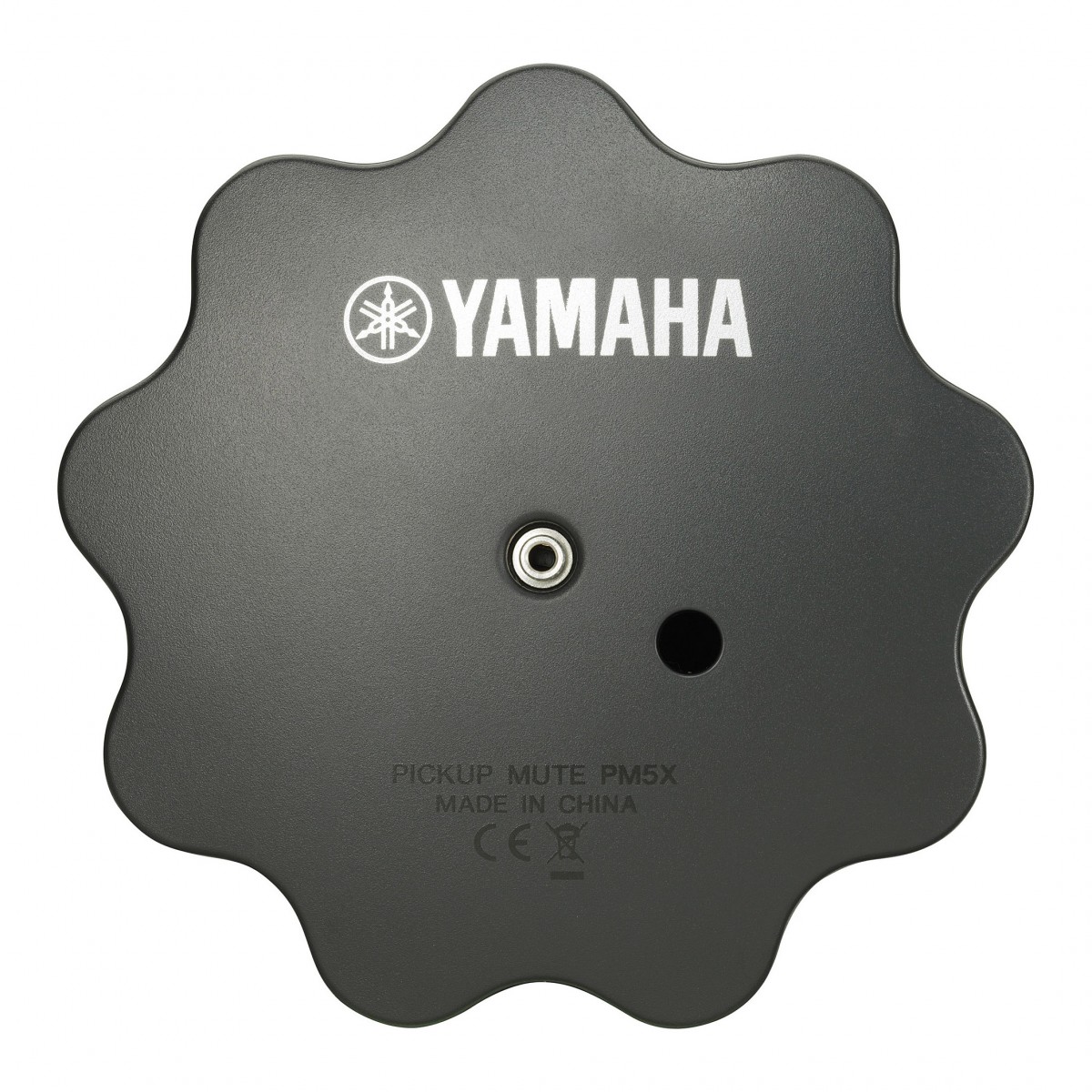

Pickup Mute™

Model

PM5X

Dimensions (Diameter x Length)

129 x 220mm (5-1/16" x   8-11/16")

Weight

155g (5.5 oz.)

Internal Microphone

電容式麥克風

Pickup Output Jack

迷你耳機插孔

Nominal Level

-25dB~-35dB

Brass Resonance Modeling™

Personal Studio™

Model

STX

Dimensions (W x D x H)

70 x 20 x 98mm

Weight

69g (2.4 oz) 不含電池

Jacks and Terminals

MUTE IN, AUX IN, PHONES

Control

VOL. (volume), Reverb type, Power ON/OFF

Brass Resonance Modeling™

有(只有在 Pickup Mute™ 連結到 Personal Studio™ 時正常運作)

Power Supply

3號(AA)鹼性電池或鎳氫電池 2個 (3V DC)

附件

附件

連結線、立體聲耳機、使用手冊

Please Note

  • In some cases, the Pickup Mute™ may not fit instruments that have significantly different bell diameters and/or shapes. Please check before purchasing.

  • The Pickup Mute™ is not compatible with Marching Mellophones, Marching French Horns, Alto (Tenor) Horns, or Baritones.

  • The SILENT Brass™ mute for Trombone (SB5X) and the Pickup Mute™ (PM5X) are not compatible with Alto Trombones or Bass Trombones.

  • SILENT Brass™ mutes for Flugelhorn (SB6X) and Pickup Mute (PM6X) protrudes 3-4 cm from the bell.

  • The Pickup Mute™ cannot be stored in the cases of French Horns with detachable bells.

  • For information on compatibility with Yamaha brass instruments and cases please refer to the "Compatibility Table".

  • Always remove the Pickup Mute™ from the instrument if the instrument is to be stored for an extended period of time.

  • The PHONES jack on the Personal Studio™ is for stereo output (do not for use it for mono output). If you want to use the jack as an external output, do not connect anything to the AUX IN jack.

  • Please note that Brass Resonance Modeling™ is only available when the STX Personal Studio™ is combined with a PM3X/5X/6X/7X Pickup Mute™. It is not available with any other Personal Studio™ or Pickup Mute™ models.

  • AA batteries are not supplied. Please purchase separately.

  • SILENT Brass™, Personal Studio™, Pickup Mute™, Brass Resonance Modeling™, and SILENT Brass™ logo are all trademarks owned by the Yamaha Corporation.
